Advantages of MLA-SMART can be best described as „ small, light-weight, low-cost, wide-band.“ Max usable RF power input: 20W on 40m, 40W on all other bands. Operating SW Bands: 80m, 60m, 40m, 30m, 20m, 17m, 15m, 12m, 10m, CB. Tripod not included. Fully functional prototype, only cosmetic imperfections.


MLA-S (MMT), the indoor magnetic loop antenna, is a new product of the Czech BTV company which has continued in MLA development for years. This is the first commercial MLA version built using the concept of patented magnetic loop antennas known as MLA-SMART. The antennas in this category differ from the earlier versions by a more complex architecture of the basic L/C resonant circuit. Classical MLAs have one or more loop turns made of a metal pipe to which an external resonant capacitor is connected. In MLA-ER design (by OK2ER) the capacitor is made as a quasi-virtual capacitor created by inserting a metal pad into the loop pipe cavity. This antenna has not become too popular despite its simplicity, mostly due to its demanding tuning procedure. The concept of MLA-SMART design improves the MLA-ER idea, while its complicated tuning is avoided. As the loop inductance in MLA-SMART a multi-layer conductor is utilized in the L/C circuit, in which the second layer is used as the virtual capacitor of the L/C circuit. The third layer can optionally be used as a capacitive coupling section of the antenna loop.

Advantages of MLA-SMART can be best described as „ small, light-weight, low-cost, wide-band.“

So far there were few magnetic loop antennas on the market which would be capable to operate over the full SW frequency range, or even on 160-m band. One of such antennas came also from the BTV design workshop, and was named MLA-M (multi-band). Over seven years, some 700 of these unique two-turn MLAs were sold. The new MLA-S (MMT), with an added value, can fully replace the MLA-M. Its advantage is that at the top SW band segment, by avoiding the shorted second loop turn, MLA-S (MMT) has its efficiency improved ten times (10-dB difference).

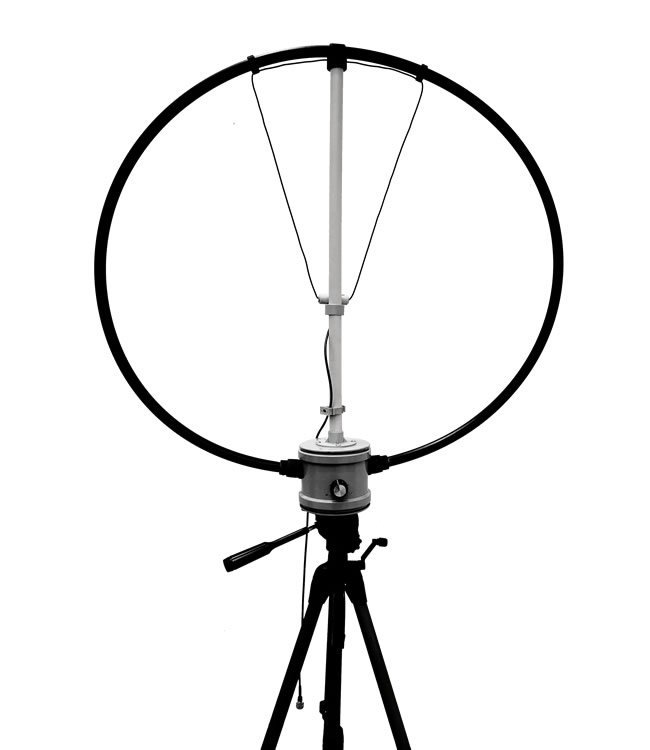

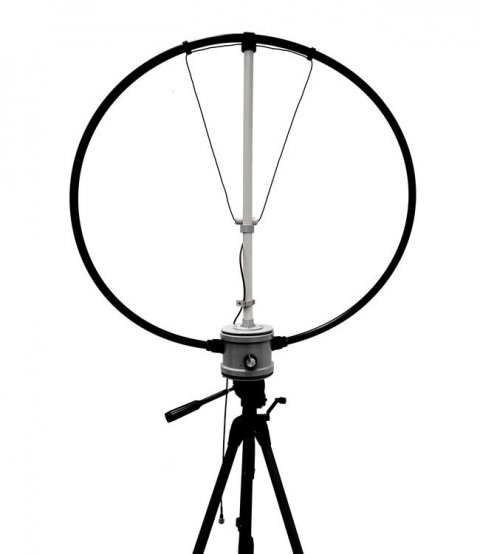

MLA-S (MMT) antenna is manually tuned, and manually turned on a tripod. The standard 1/4“ thread in its box base fits to any robust camera tripod. See Figs.5. . The patented design of MLA-SMART L/C circuit allows to switch the antenna to any of three short-wave segments by one jumper, Fig.2. Over any of these segments the antenna can be continually tuned by a classic variable capacitor, Fig.3.

The short-wave segments selectable by MLA-MMT jumper are:

  1. 80 and 60 meters,
  2. 40 meters,
  3. 30 through 10 meters, see Fig.2 a,b,c.

For a correct MLA operation, two basic conditions must be met : a sophisticated design (manufacturer's task), correct tuning (user's task). The correct tuning includes also a correct impedance matching to a feeder. Contrary to other antennas, the new MLA-S (MMT) is provided with the „triangle match“ that allows to match the antenna with SWR close to 1:1. See fig.4.

Without meeting the last condition the antenna cannot radiate effectively as the complete antenna systém does not behave as a magnetic loop antenna but rather as a „coaxial antenna“ terminated into a mismatched „expensive L/C circuit“.

Many MLA manufacturers do not think about the second important condition, and their antennas cannot be perfectly matched. All BTV MLAs are provided with a configurable coupling devices, to optimize the radiation of the RF power from a transmitter. (Most often, by a rotatable FCL – Faraday Coupling Loop, or the „triangle match“.)

Operating SW Bands: 80m, 60m, 40m, 30m, 20m, 17m, 15m, 12m, 10m, CB

Usable RF power input: different power for different bands, on 40m 20W max, all other bands max 40W.



Technical parameters

  • Frequency range:3,5 to 28 MHz
  • Input impedance:50 Ohm
  • Typical Q:up to 250
  • Maximum usable power:40 W
  • Best achiavable SWR:1:1 max 1:1,2
  • Input connector:BNC
  • Dimensions:0,85 x 0,17 x 0,90 m
  • Weight:1,6 kg
  • Loop Diameter:850 mm
