MLA-T PRO v.4

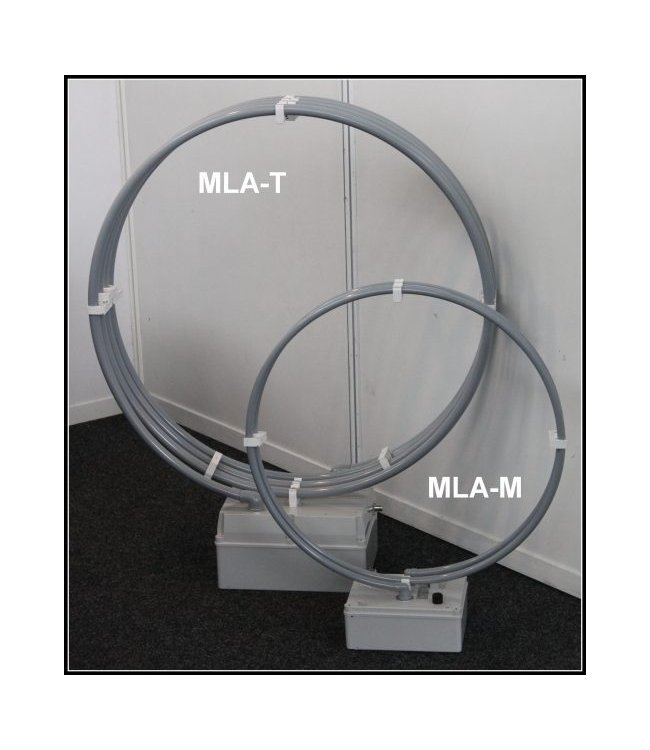

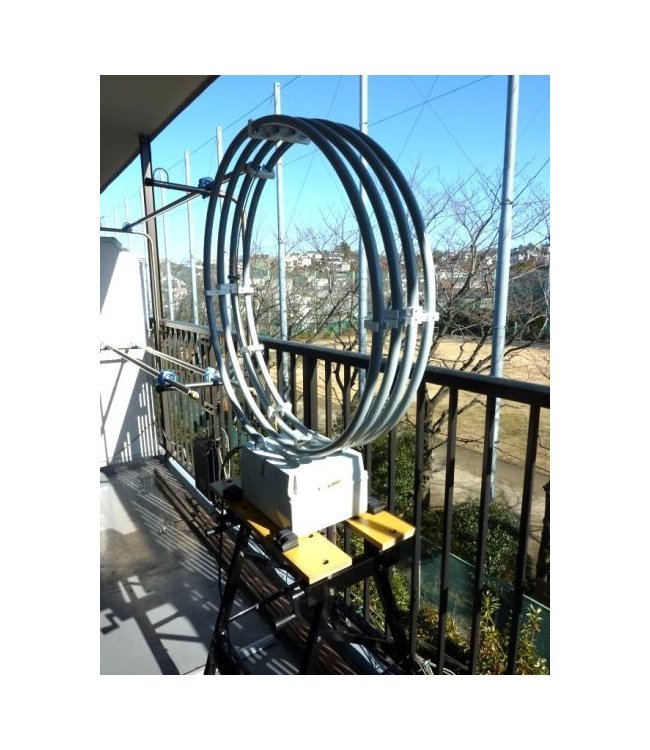

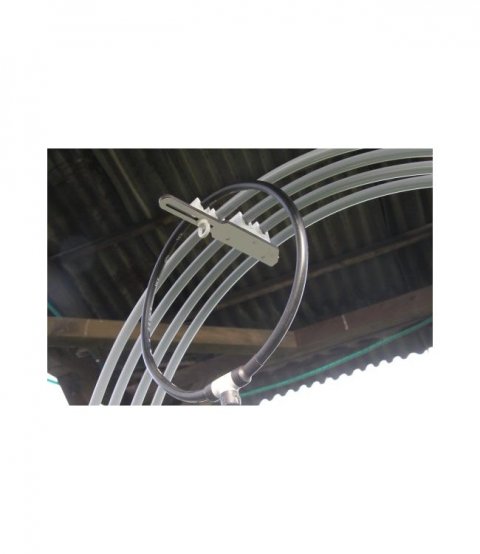

A low-power balcony antenna for 160-m, 80-m, 60-m and 40-m band Magnetic loop antenna MLA-T (Magnetic Loop Antenna Top Bands) is operation with power up to 100W and designed mainly for portable use on 160m, 80m, 60m and 40m bands.

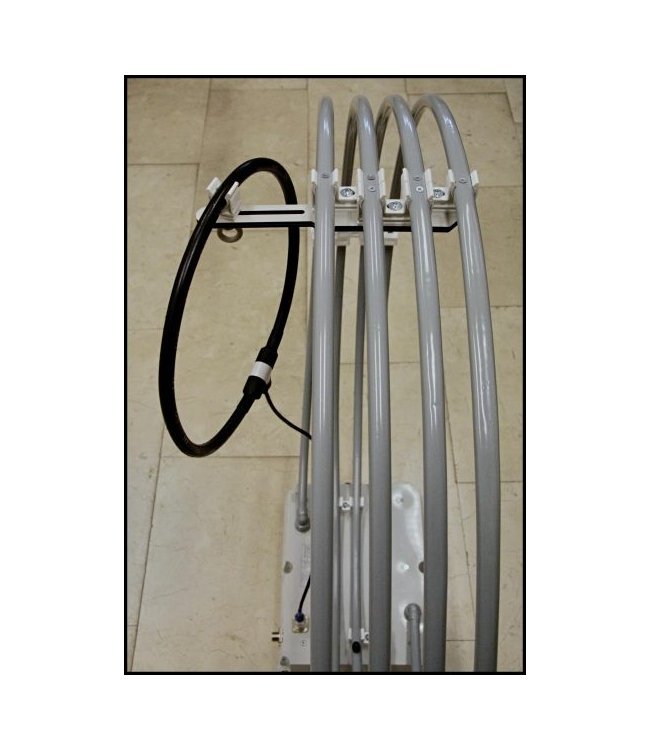

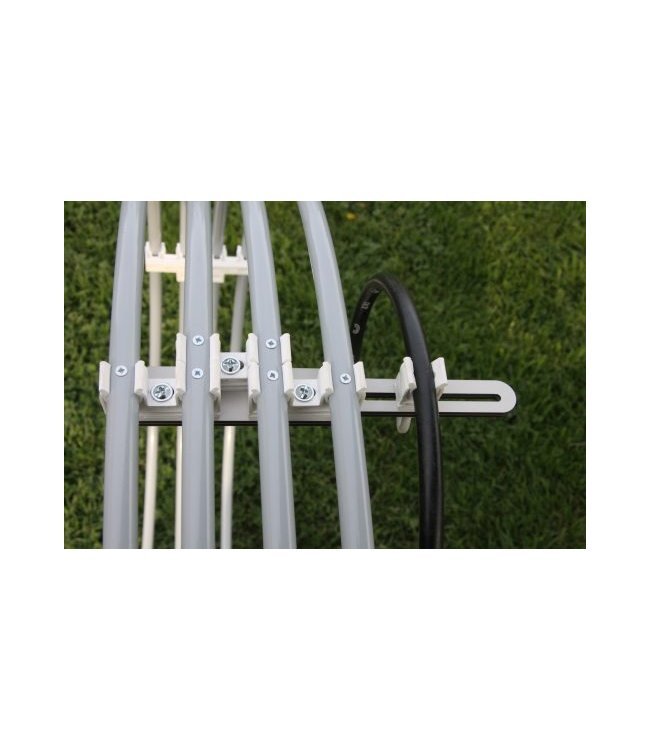

On 160m band 3S loss agaist dipole in several tens of meters high needs to be expected while this loss has strong dependence on polarization of received signal. Operation on 40m band is possible by shorting of loop by mechanical jumper which is included. Robust design of 4 loops MLA provides relatively good efficiency even with extremely small diameter of antenna. Antenna is serving satisfactory results mainly on 40m, 60m and 80m band while 160m is compromise between minimal dimmensions of antenna and physical attainable effect. Bands switching is not designed to remote control so MLA-T is not ideal solution for static base antennas. In its price category MLA-T extends commercial magnetic loop antennas range designed to two top HAM bands.
Remote tunning of manually switched band is done by DC motor with integrated transmission 1:600 and pulse speed control. Each start of motor is slowed down by 3 times for 3 seconds which allow to fast and precise fine tuning of antenna. Tunning direction (frequency UP/DOWN) is done by two buttons, whole tunning motor controll is done by processor and firmware. For fast control of operation and tunning direction there are 3 color LEDs on control panel. Motor is powered by coaxial cable with DC crossover. On input side (at TRX) is crossover in control panel, on output side is corssover integrated in antenna assembly. For control panel and antenna tuning is used standard DC power adapter 230V/12V/0,8A which is included. Antenna and control panel is connected with coaxial cable 50 Ohm. Outdoor side is connected by PL connector, indoor side to control pannel is connected by standard PL connector. Cable for TRX and control panel connection is included (2m PL-PL).
MLA-T is for indoor usable with maximum power of 10W. For higher powers than 10W don't use it as indoor antenna ! Even there is no proof of negative effect of high frequency radiation at this power level you should avoid exposure of long time exposure. At 100W is minimal recomended distance of operator from antenna at least 5m. Don't touch antenna while it is powered by high frequency power to avoid injury or death. Using of MLA antennas can cause EMC problems because standard electonic shielding (without ferromagnetic material) are not effective agaist magnetic part of field. MLA-T is not suitable for persons with heart pacemaker.
Caution: High frequency magnetic field passes through walls with low loss!
- Control box connectors:2x PL
- Dimmensions:820 x 1050 x 220 mm (w,h,d)
- Frequency range:1,82 to 1,95 MHz
- Frequency range:3,3 to 4 MHz
- Frequency range:5,3 to 8 MHz
- Input impedance:50 Ohm
- Loop Diameter:800 mm
- Maximum power:100 W
- MLA input connector:PL
- Ratio d/λ on 160m:0,5 %

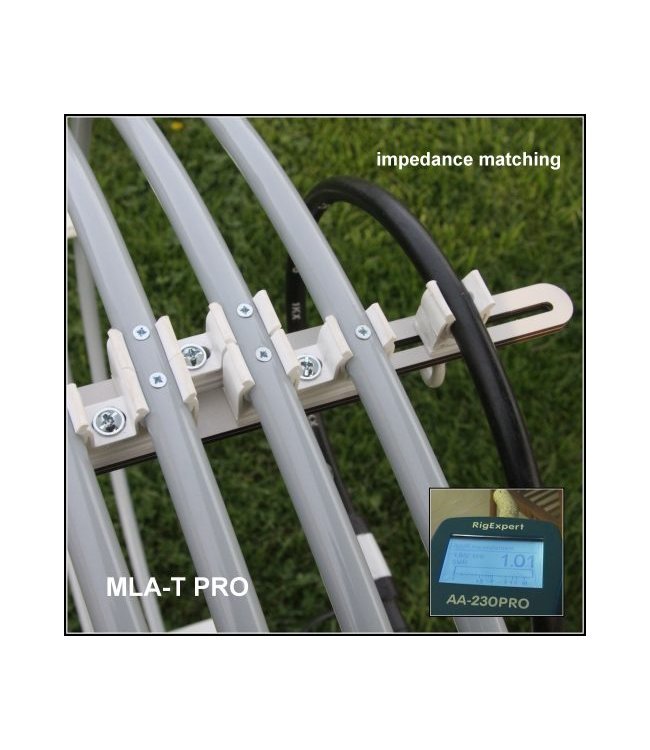

- SWR when tuned:max. 1:1,1
- Weight:12 kg
